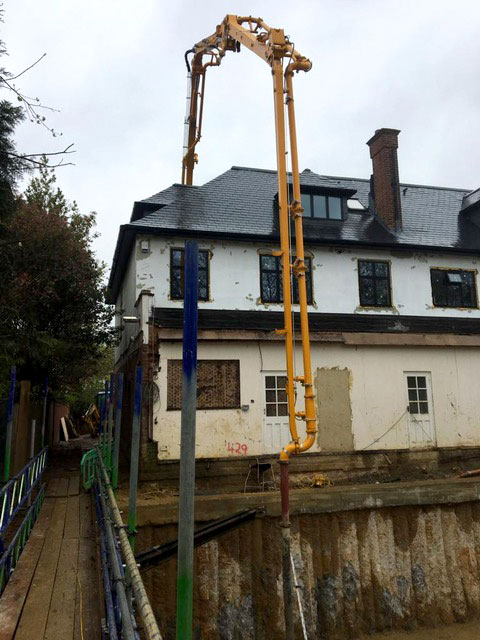

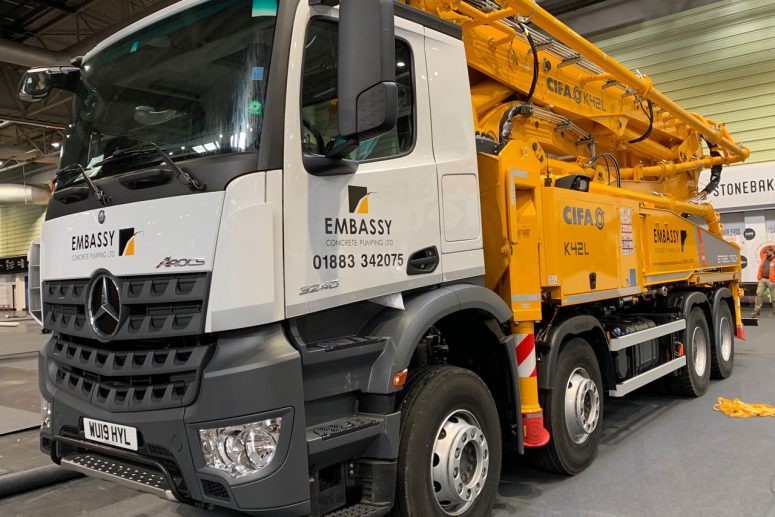

The CIFA K42L is a 42m-reach boom pump featuring ASC (Advanced Stability Control) – the latest in concrete pumping technology.
ASC allows the pump to be safely short rigged and enables the pump to set up in a smaller footprint than machines with a similar reach.
- 42m Reach
- 160m of Concrete per Hour
- ASC (Advanced Stability Control)
- Twin wall boom pipes
- Proportional Radio remote control
- Washdown jetwash
- Autolube
- 5 Section boom
Main features
- Advantageous assembling on standard 4 axles chassis
- Self-supporting frame, torsion free, FEM designed
- Placing boom B5RZ 42/37, 5 sections, pipeline diameter 125 mm, “RZ” folding system
- Fully hydraulic outrigger controls on both sides of the truck
- Front “X” style diagonal outriggers with double telescopic openingand swing-out rear outriggers for a quick and easy set-up also innarrow areas
- “Load Sensing” proportional boom control
- “BFC” Best-Flex Cifa supporting system allowing just one man to change delivery pipeline easily, quickly and safe
- Concrete flow rate regulator
- Safety device on opening inspection hatch
Standard equipment
- 2 Proportional radio control with two boom movement speed, synthesizer for automatic frequency search, 8 position joy stick and concrete flow rate regulator. 20 mt cable
- Emergency control pad for pumping unit HP-C
- Remote controlled electric vibrator placed on the concrete hopper grid
- Centralized lubrification system for pumping unit
- Automatic oil lubrification system for pumping pistons on HP-C
- Additional manual lubrification system for pumping unit
- Hard plastic outrigger support plates with relative housing
- Rear light on hopper
- Level readers for stabilization control
- Accessories for cleaning and pipes washing
- Double thickness concrete pipes, in high resistant steel and insert carbide crome – CIFA Long
- Life Pipes
- Fiber glass hopper covering
Placing boom technical data
- Pipeline diameter
- 125mm
- Max. vertical reach
- 41,1m
- Max. horizontal distance(from center of slewing axis)
- 36,8m
- Min. unfolding height
- 8,8m
- Section numbers
- 5
- 1st section opening angle
- 90°
- 2nd section opening angle
- 180°
- 3rd section opening angle
- 180°
- 4th section opening angle
- 237°
- 5th section opening angle
- 244°
- Rotating angle
- 370°
- End hose lenght
- 4m

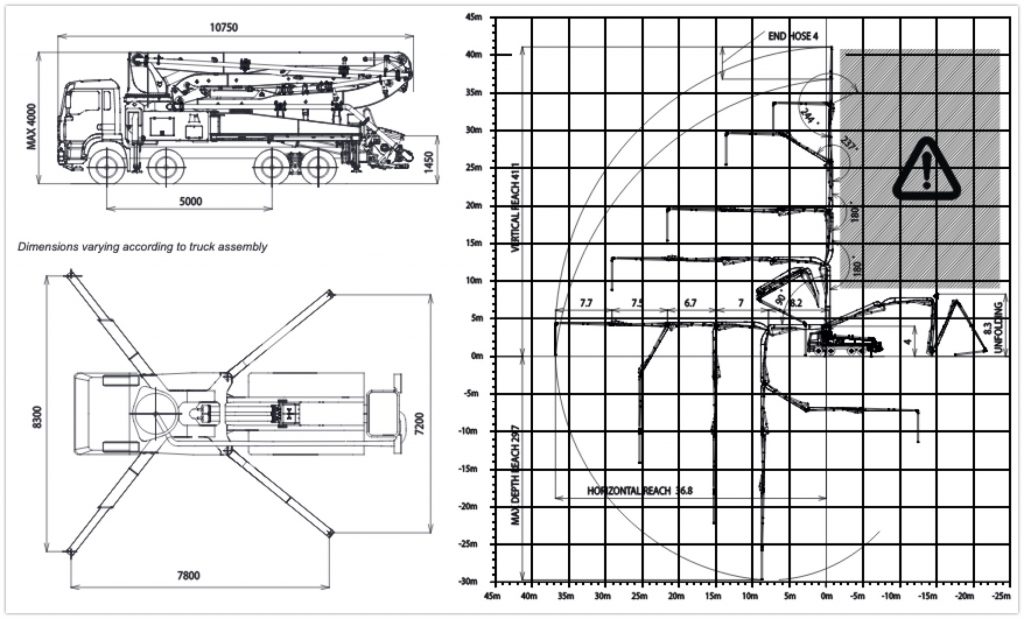

Dimensions
