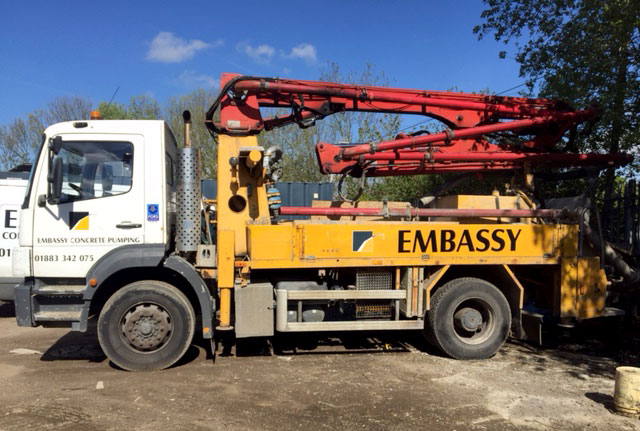

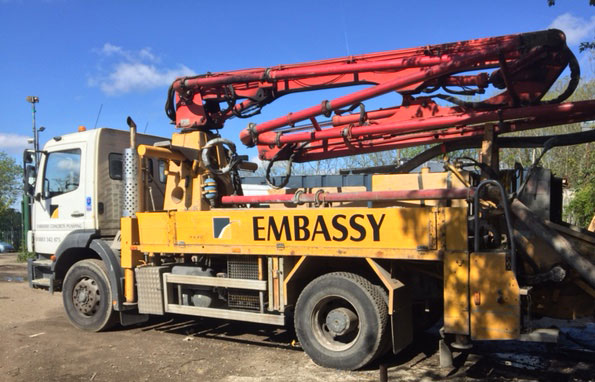

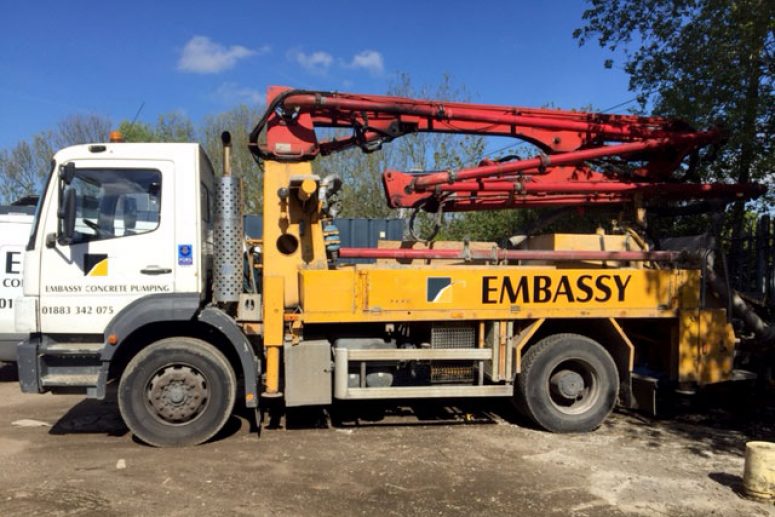

Our 16m-reach Putzmiester concrete pump is the smallest boom pump in our fleet. Its outriggers don’t need to come out laterally; they can deploy straight down — requiring less space to set up.

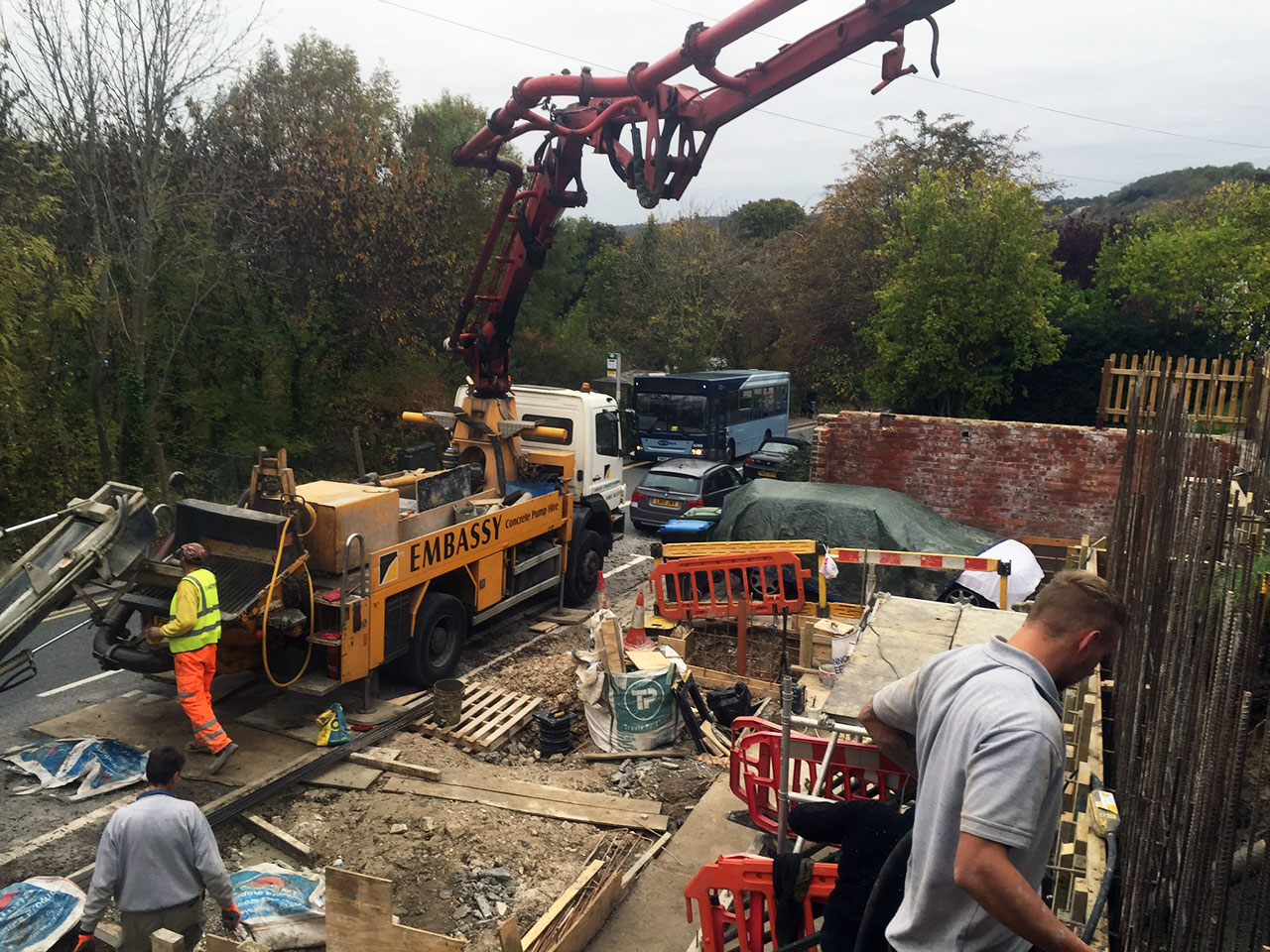

This pump comes into its own on sites where there isn’t much space.
- 3 section boom
- Radio remote control
- 90m Concrete Per hour
- 4 inch pipe boom

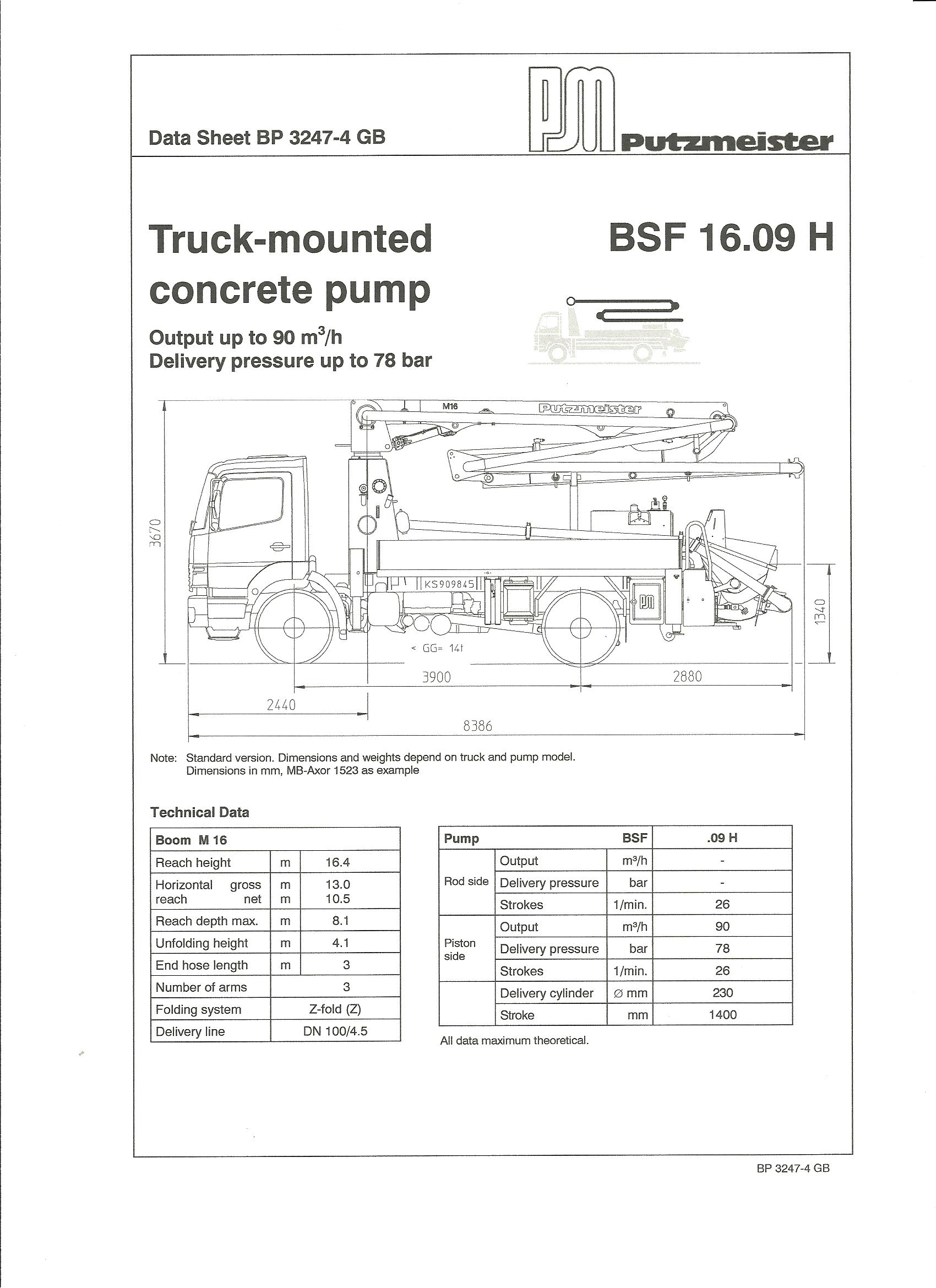

Technical data
Boom M 16
- Reach height
- 16.4m
- Horizontal reach (gross)
- 13m
- Horizontal reach (net)
- 10.5m
- Reach depth max.
- 8.1m
- Unfolding height
- 4.1m
- End hose length
- 3m
- Number of arms
- 3
- Folding system
- Z-fold (Z)
- Delivery line
- DN 100/4.5
Pump BSF .09 H
- Rod side strokes
- 26/min
- Piston side output
- 90m cubed/h
- Piston side delivery pressure
- 78 bar
- Piston side strokes
- 26/min
- Delivery cylinder
- ⌀ 230mm
- Stroke
- 1400mm

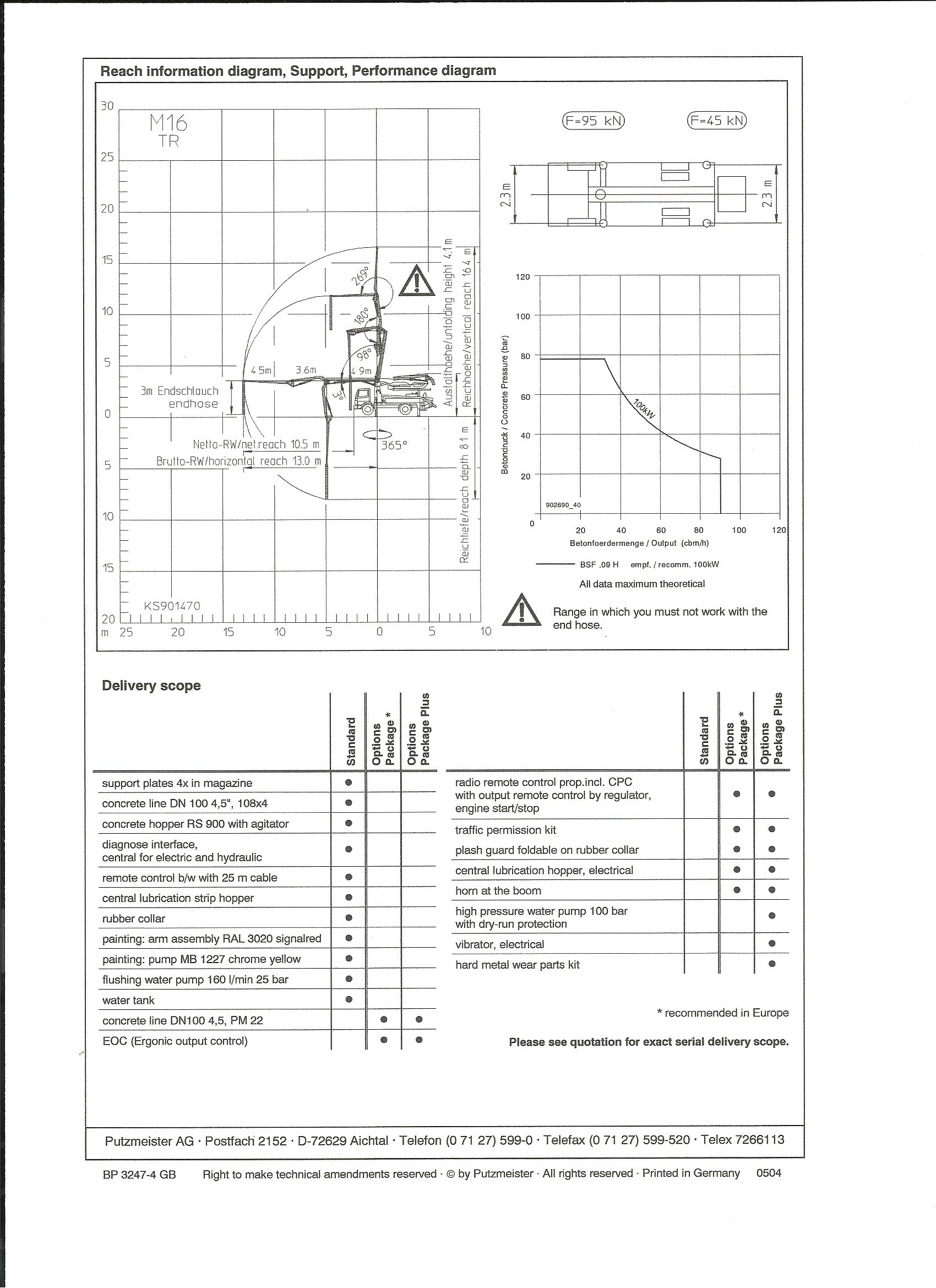

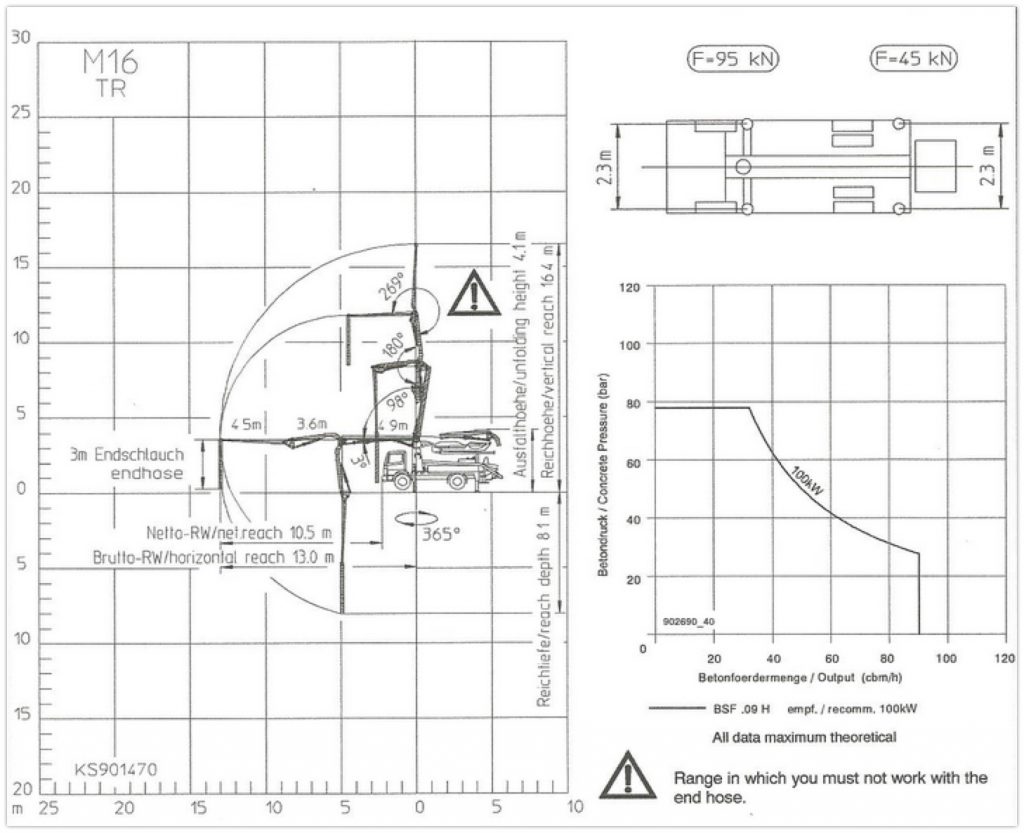

Operating range

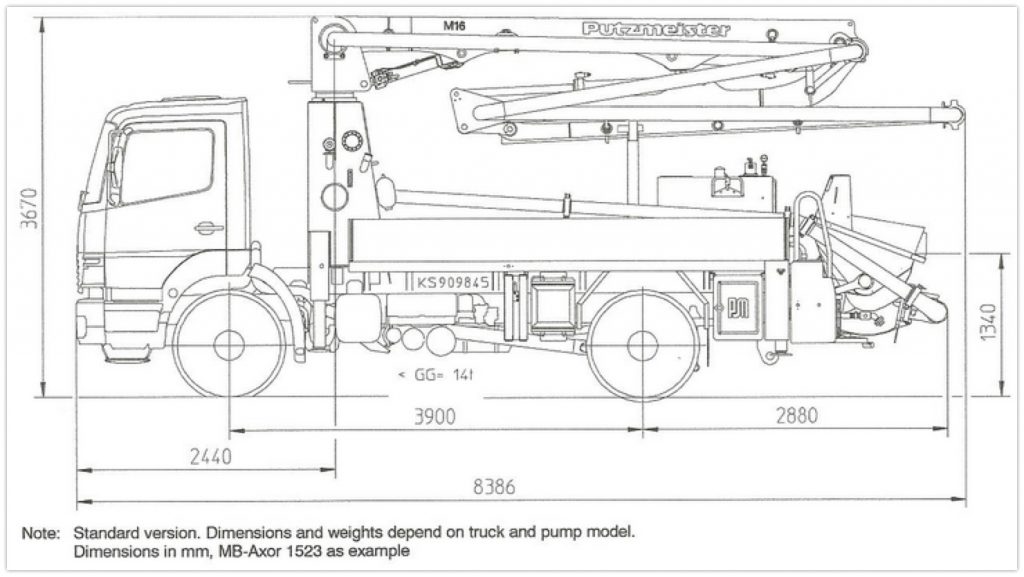

Space required
