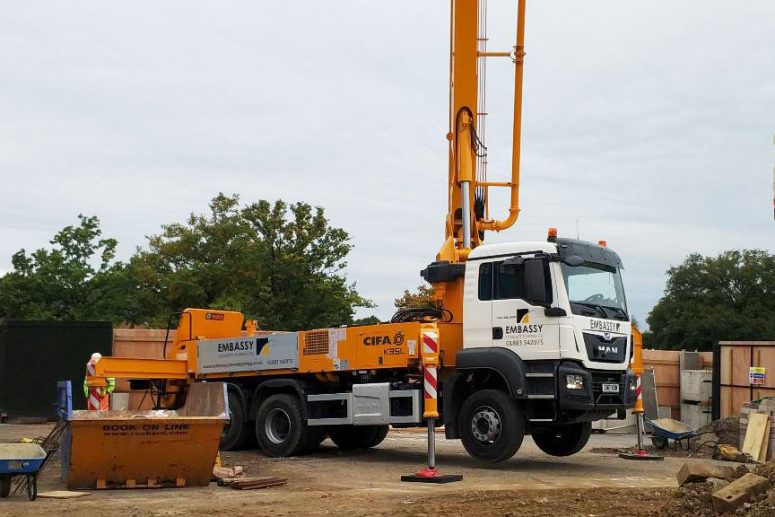

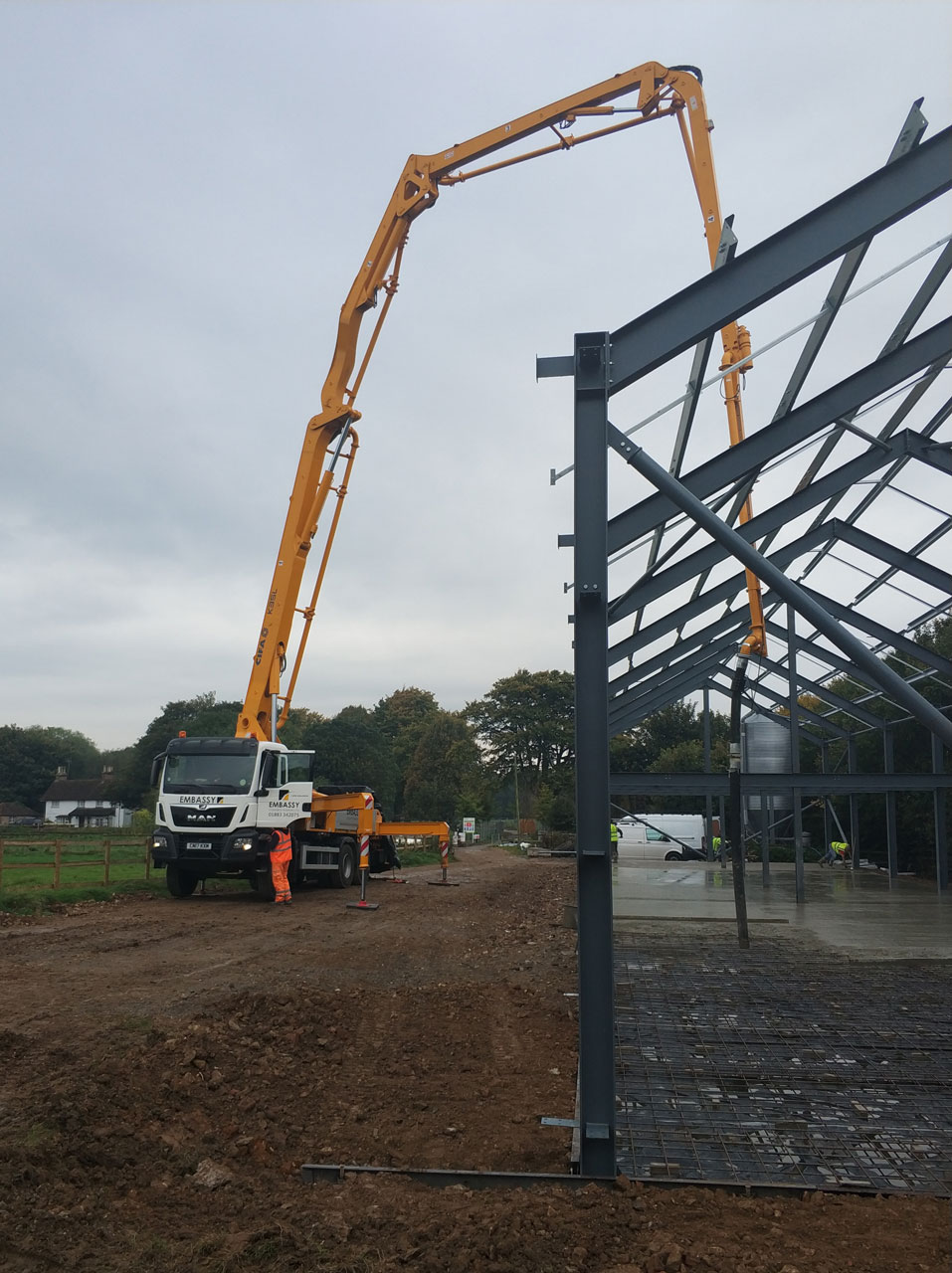

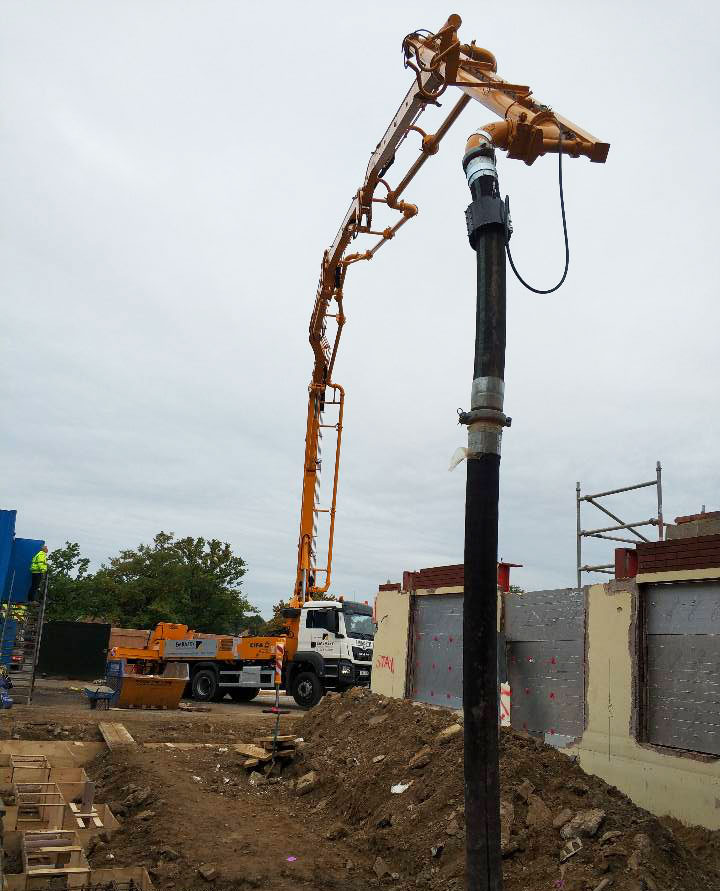

The CIFA K36C is a 5-section concrete boom pump with a reach of 36m that can pump up to 140m concrete per hour.
The K36C’s five-section arm benefits from a patented 360° continuous rotation system making it particularly suited to your really trickly jobs.
- 140m concrete per Hour
- 5 section boom
- Proportional Radio Remote
- Small setup Footprint
- Section 5 of the pump can do a continuous 360 rotation
Standard equipment
- Advantageous assembling on 3 axles chassis
- Self-supporting frame, torsion free, FEM designed and fatigue tested at the test bench TEC CIFA
- Placing boom 5Z 36/32, 5 sections, “Z” folding system
- 2 Proportional radio controls with two speeds boom movement, automatic frequency scanner
- 20 m emergency cable to connect radio controls.
- Centralized lubrification system for pumping unit
- Hard carbide wear plate and cutting ring for PU pumping units
- Fiberglass hopper covering
- Low pressure water pump (20 Bar / 75 l/min)
- One colour painting white RAL 9010
- 2 Use & Maintenance manuals
- Spare parts and service manual
Control system
- Easytronic Gold:
- LSC (Light Stability Control)
- Integrated color LCD
- CountersP
- umping unit management
- Diagnostic
Pumping unit technical data
- Model
- PU1207
- Maximum theorical output
- 120m3/h
- Maximum pressureon concrete
- 70 bar
- Conc. cylinders(diam. x stroke)
- 230x2100mm
- Concrete hopper capacity
- 550l
- Hydraulic circuit
- Open
Placing boom technical data
- Model
- K36C
- Pipeline diameter
- 125mm
- Maximum vertical reach
- 35,5m
- Maximum horizontal distance(from center of slewing axis)
- 31,1m
- Minimum unfolding height
- 8,5m
- Section numbers
- 5
- 1st section opening angle
- 90°
- 2nd section opening angle
- 180°
- 3rd section opening angle
- 230°
- 4th section opening angle
- 180°
- 5th section opening angle
- 250°
- Rotating angle
- +/-270°
- End hose length
- 3m

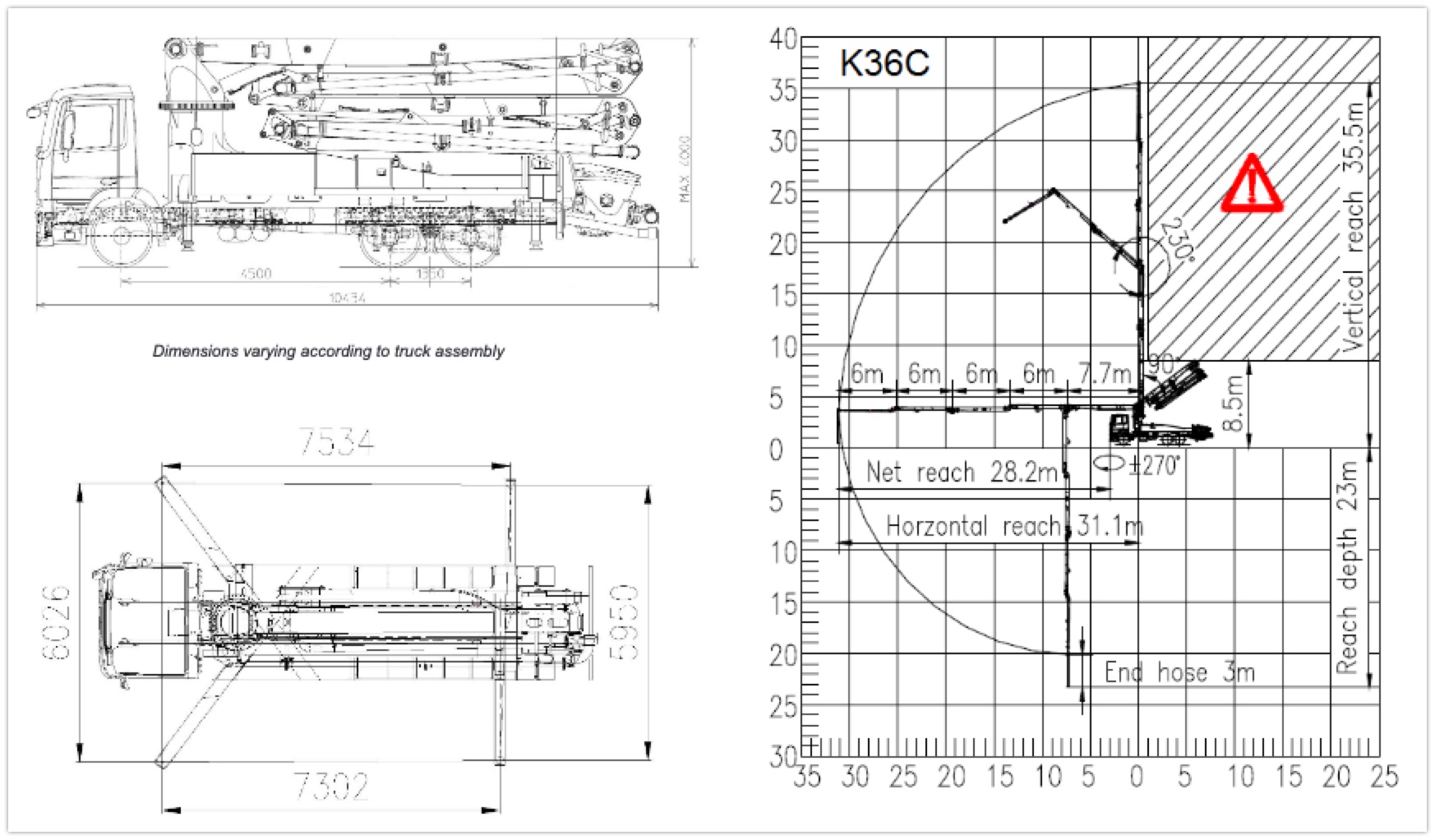

Dimensions
